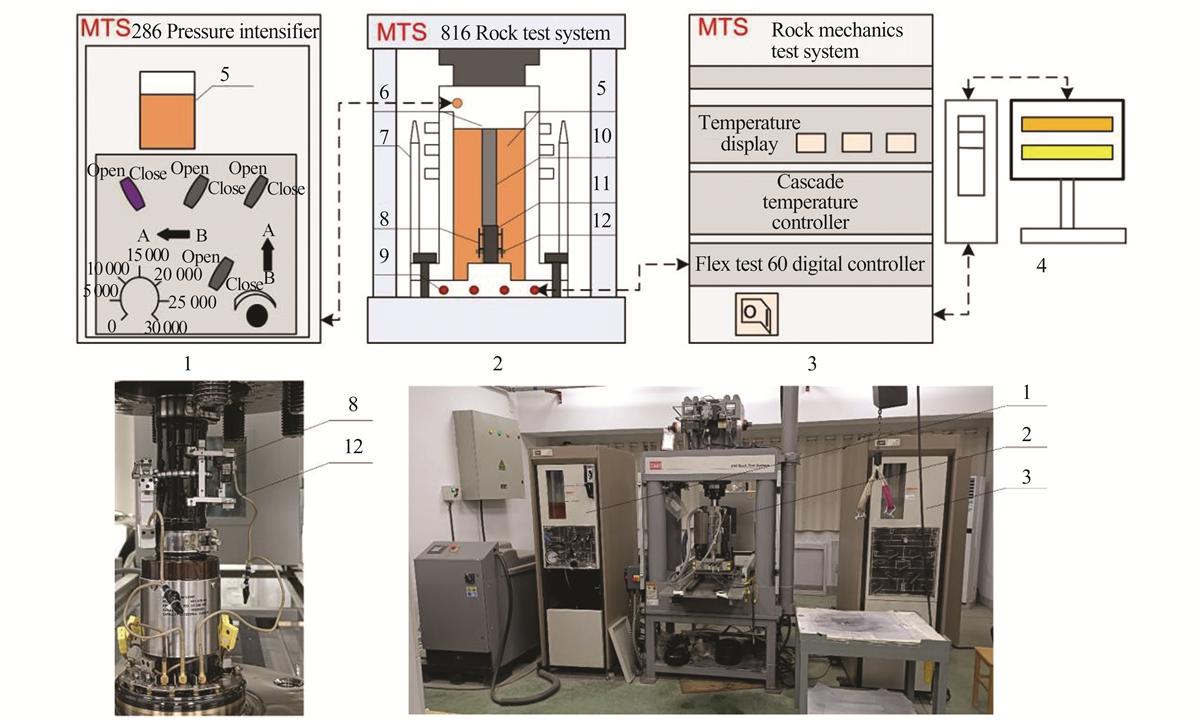

Schematic diagram of MTS816 Rock Test System
1-Hydraulic circulation control system; 2-Triaxial operating room; 3-Control cabinet; 4-Data collection system; 5-Hydraulic oil; 6-Triaxial cavity; 7-Locating rod; 8-The axial extensometer; 9-The sensor interface; 10-The pressure device; 11-Sample; 12-The circumferential extensometer
